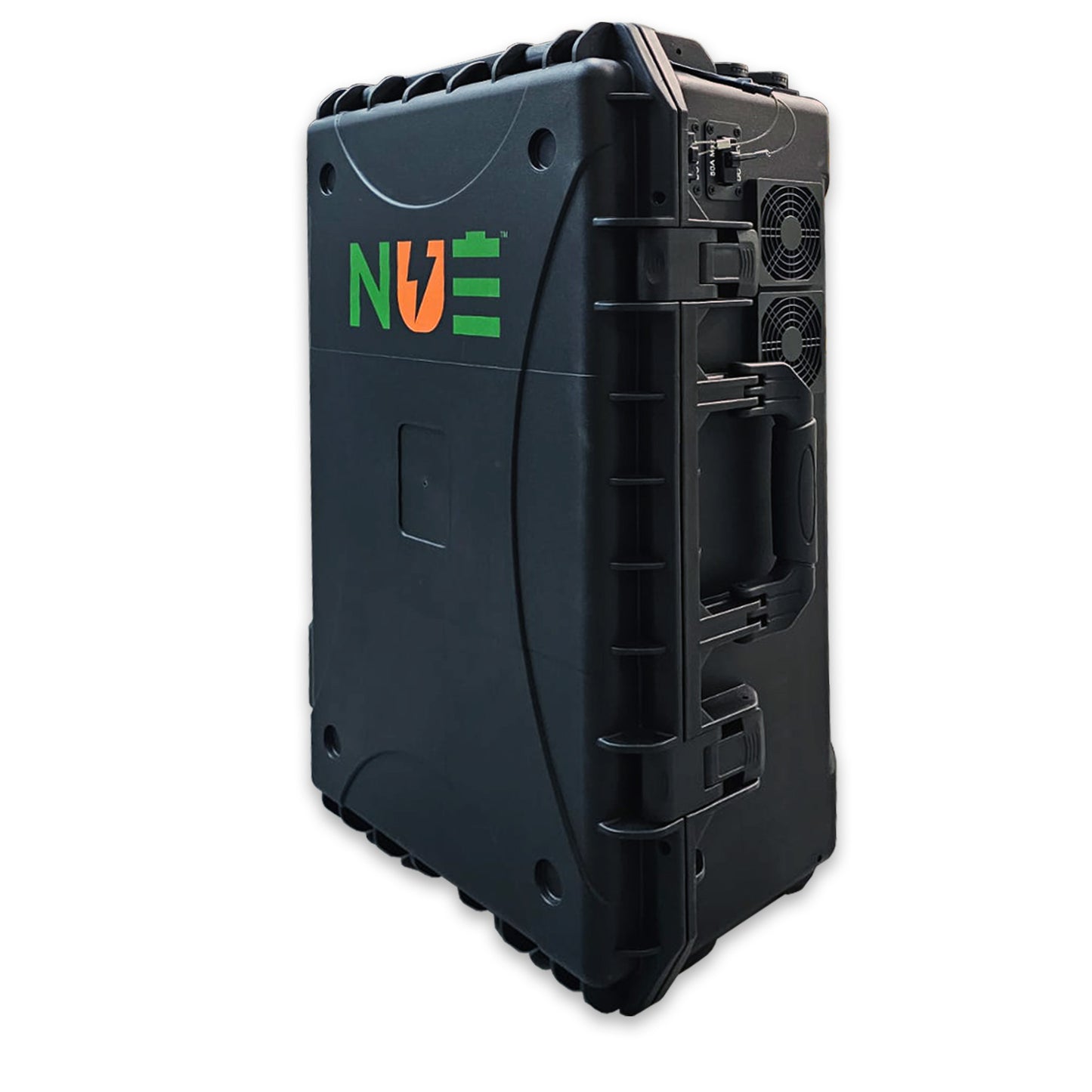

SunCase™ 3651

SunCase™ 3651

$4,400.00
$4,400.00
Suncase 3651
Powerful professional grade solar generator in a rugged, portable form factor
View full details

A large “two-person carry” solar generator capable of running any 120V or 48V appliance

Rugged 3600W/ 5120Wh unit with a built-in inverter/charger capable of accepting up to 1700W/170V DC of PV input. Includes 1650W of built-in AC charging standard.

5kWh and 3.6kW inverter make this product optimal for large professional-grade loads

Can output both 48V DC and 120V AC power from the same unit

High Cycle life of 6,000 cycles at 80% DoD (subject to variability)

Rugged pelican style case and ergonomic handles designed for harsh operating and transportation environments

Easy to use Bluetooth App

Other DC outputs (12V & 5V USB)

Product Data Sheet

User Manual

SunCase Version 3651
Pure Sine Wave Inverter3600W Continuous (7200W Surge)
Battery Type Lithium Iron Phosphate (LifFePO4)
Storage Capacity 5.12 kWh
Estimated Cycle Life based on an 80% Depth of Discharge(subject to other variables including temperature and load) 6,000
DC Nominal Voltage 48V
Output Options120V or 240V, 50/60Hz, All models have 48V, 12V, and 5V USB DC direct output
Solar Charge Controller70-150V 1700W Max
AC Charging 1650W Internal Built-In. External fast-charger optional. Max 100A charge rate
Circuit Breaker Protection Built-in 80A, CHNT, Model#: NXB-125-1P
Recommended Operating Voltage Range48-54.4V DC
Operating Temperature Range32-131°F (0-55°C)
Weight123 lb (53 kg), (boxed gross: 135lb [61kg])
Enclosure Dimensions (HxWxD)(HxWxD) 28”x18”x11” (72x46x28 cm), Box Dimensions 39”x 24”x17” (100x59x43cm)
Warranty and Certifications2-YEAR LIMITED MANUFACTURER’S WARRANTY, UL1973 (cells), UN38.3 (cells) CE (cells), RoHS compliant (Cells), UL 489 (Circuit Breaker), CSA C22.2 No. 5 (Circuit Breaker)

Warm Up with Our Optional Heating Element – Keeping Power Flowing, Even in the Cold

Defy the Cold: When temperatures drop, your power doesn't have to. Our optional heating element is designed to kick into action at 0 degrees Celsius (32 degF), ensuring your battery pack stays warm, efficient, and running. With this feature, your power systems remain reliable and high-performing, even in chilly conditions.

Smart Power Consumption: Efficiency is key, especially in power management. That's why our heating element is a marvel of smart design. Consuming just 85 watts of power from the battery, it efficiently maintains warmth without draining your energy reserves or relying on an external power source.

Always Ready: The optional heating element keeps your battery pack ready to discharge or charge, whatever the weather. By maintaining optimal temperature, you can bring clean power where its needed the most in extreme conditions.

Introducing NUE Tracker 1.0 – The Future of Battery Security and Management

Stay Connected, Stay Informed: With NUE Tracker 1.0, your batteries and portable power systems are never out of sight. Utilize our cutting-edge GPS tracking to keep a vigilant eye on your assets anytime, anywhere. Whether you're on the move or at your desk, our real-time online asset tracking is accessible via a user-friendly mobile app or web browser.

Security at Your Fingertips: Don't just monitor; actively protect your assets. NUE Tracker 1.0 is equipped with advanced vibration alerts and geo-fencing technology. These features instantly notify managers of any tampering or theft attempts, ensuring your peace of mind.

Global Reach, Ready to Go: We understand the need for seamless integration. That's why NUE Tracker 1.0 comes pre-installed. Backed by near-global 4G IoT data coverage, it’s ready to safeguard and track your batteries across borders without any hassle.
