SunKit™ 5050 INT

SunKit™ 5050 INT

$7,000.00
$7,000.00
A powerful, rapidly deployable solar generator and Uninterruptible Power Supply
View full details

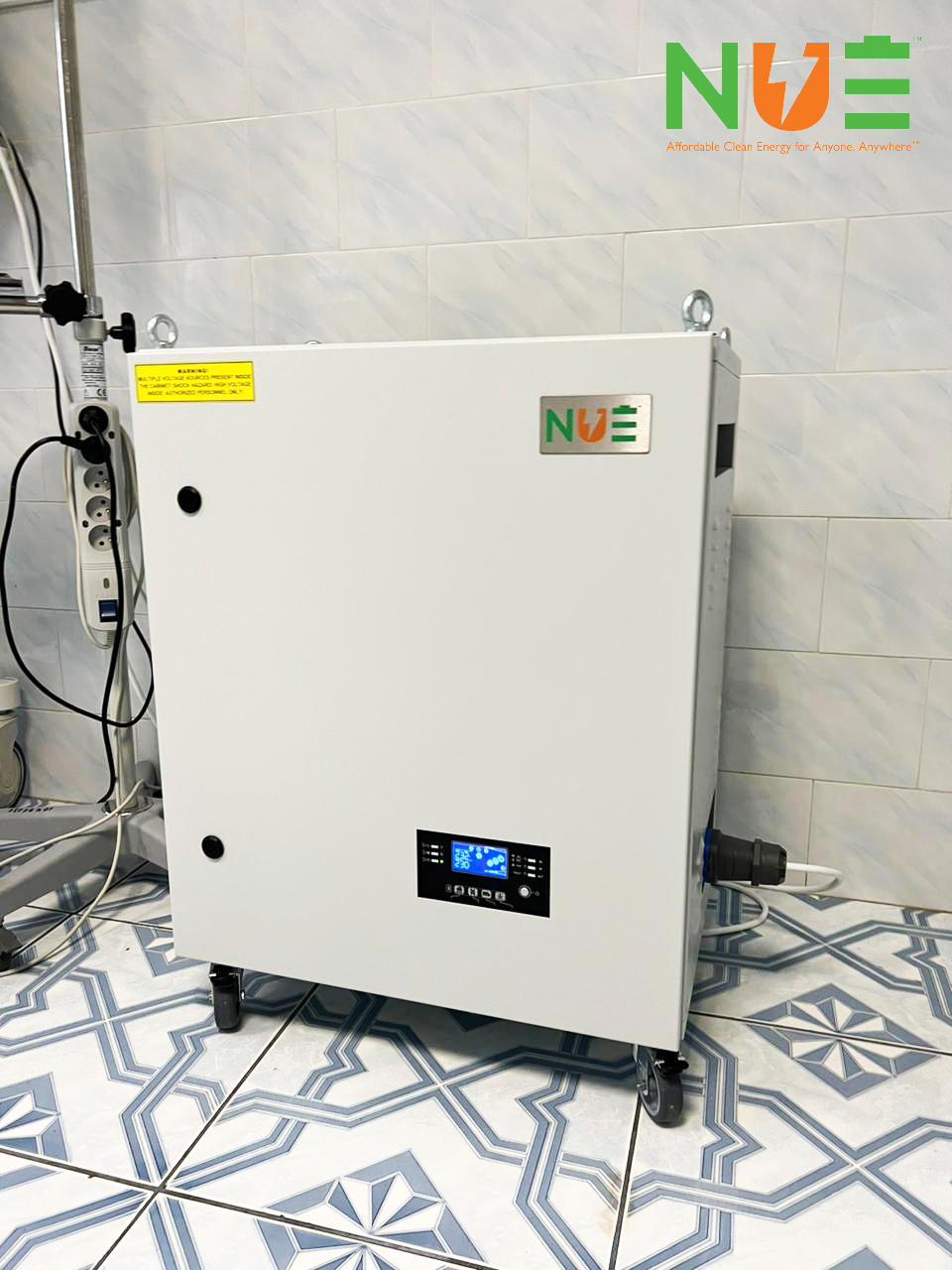

The NUE SunKit™ 5050 INT is a rapidly deployable off-grid or backup (Uninterruptible Power Supply) solar power system that has been used in settings ranging from hospitals to evacuation centers. Deploy the SunKit™ 5050 INT anywhere a larger, longer term power solution is needed.


With its powerful 5000W 240V AC inverter and high capacity 5120Wh LiFePO4 battery, the SunKit™ operates in places where traditional gas or diesel generators can’t.  Unlike the gas or diesel generators it displaces,  we designed the SunKit™ to be used indoors where it provides users with safe, quiet and pollution free power.


Like all NUE products, the SunKit™ 5050 INT can charge its battery from a purely solar source (420W to 4000W of PV input) with the option of also charging from a generator or a wall outlet.

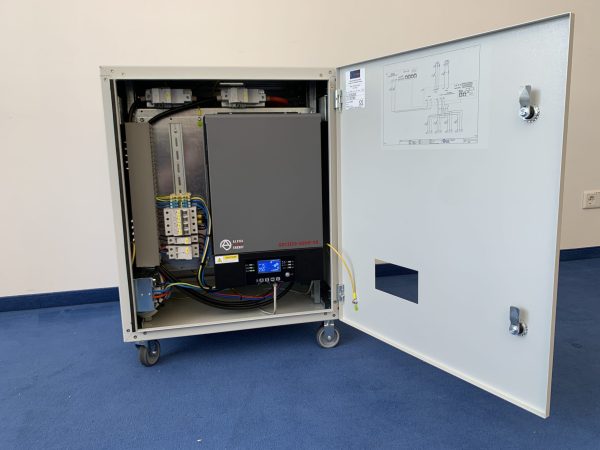

Set up in minutes. This is a fully integrated solar power and energy storage system in a single enclosure. Just attach the solar array and/ or AC charging source and plug in your lights and appliances

Hybrid inverter with UPS function for immediate backup power from batteries when grid failure occurs.

Silent, emission free operation allows safe indoor use

Heavy duty wheels allow unit to be easily moved or locked in place

LiFePO4 Battery designed to operate for 6000 cycles

Bluetooth enabled, Wifi optional

Product Data Sheet

MSDS

UN38.3 Test Report

Quick Start Guide

SunKit Version 5050INT
Pure Sine Wave Inverter 5000W Continuous (10kW 5 sec surge)
Battery Type Lithium Iron Phosphate (LifFePO4)
Storage Capacity 5120Wh
Estimated Cycle Life based on an 80% Depth of Discharge(subject to other variables including temperature and load) 6,000
DC Nominal Voltage 51.2V
AC Output Options240V AC 50/60Hz
Solar Charge Controller80A@ 51.2V DC, 4000 Watts PV Max (MPPT range 120V-450VDC)
AC Input 230V AC in with programmable battery charging current (set to 10A default)
Circuit Breaker Protection Yes
System Operating Voltage Range (Default)44-66V DC
Operating Temperature Range32-131°F (-0 to 55°C)
Weight243 lb (110kg) [132 lb (60kg) without 110lb (50kg) battery]
Enclosure Dimensions (HxWxD)28”x24”x16” (70cmx60cmx40cm) [4” (10cm) wheel height]

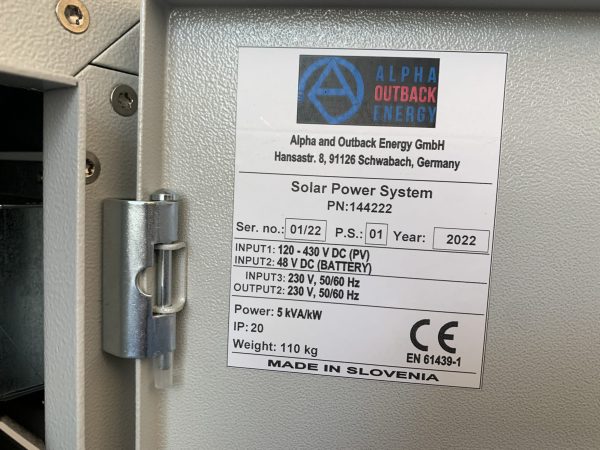

Warranty and Certifications2-YEAR LIMITED MANUFACTURER’S WARRANTY, UN 38.3 and CE Certified (Inverter and Battery)

  • Connector cable (Anderson to MC4) for solar charging
  • PV Extension cable (30ft)

  • PV Extension cable (100ft)

Introducing NUE Tracker 1.0 – The Future of Battery Security and Management

Stay Connected, Stay Informed: With NUE Tracker 1.0, your batteries and portable power systems are never out of sight. Utilize our cutting-edge GPS tracking to keep a vigilant eye on your assets anytime, anywhere. Whether you're on the move or at your desk, our real-time online asset tracking is accessible via a user-friendly mobile app or web browser.

Security at Your Fingertips: Don't just monitor; actively protect your assets. NUE Tracker 1.0 is equipped with advanced vibration alerts and geo-fencing technology. These features instantly notify managers of any tampering or theft attempts, ensuring your peace of mind.

Global Reach, Ready to Go: We understand the need for seamless integration. That's why NUE Tracker 1.0 comes pre-installed. Backed by near-global 4G IoT data coverage, it’s ready to safeguard and track your batteries across borders without any hassle.
