NUEPower™ Battery Family
NUEPower™ Battery Family
Couldn't load pickup availability
All NUEPower™ batteries offer high cycle life and safe LiFePO4 Tier 1 cells. NUEPower™ batteries provide built-in Bluetooth communications directly from the Battery Management System (BMS), providing accurate state of charge information, cell voltages, runtime estimates, and remote control capabilities. With NUEPower™, users don’t have to guess about the state of their batteries, unlike lead acid batteries.
NUE batteries operate up to 55 degrees C (130 F) and can operate in cold conditions with the use of an optional heating element that wraps around the cells, providing a superior and more efficient heating method compared to heater mats below the batteries used by other battery manufacturers.
NUEPower™ Battery Family:
- 12v 100Ah ABS case
- 24v 200Ah ABS case
- 48v 100Ah ABS case
- 48v 100Ah Rack mount
NUE also works with Australia-based Power Plus Power and is pleased to offer their Power Plus Energy 48v 77Ah Rack Mount batteries for customers in North America.
NUE Power 36V 100Ah_UL Product Data Sheet

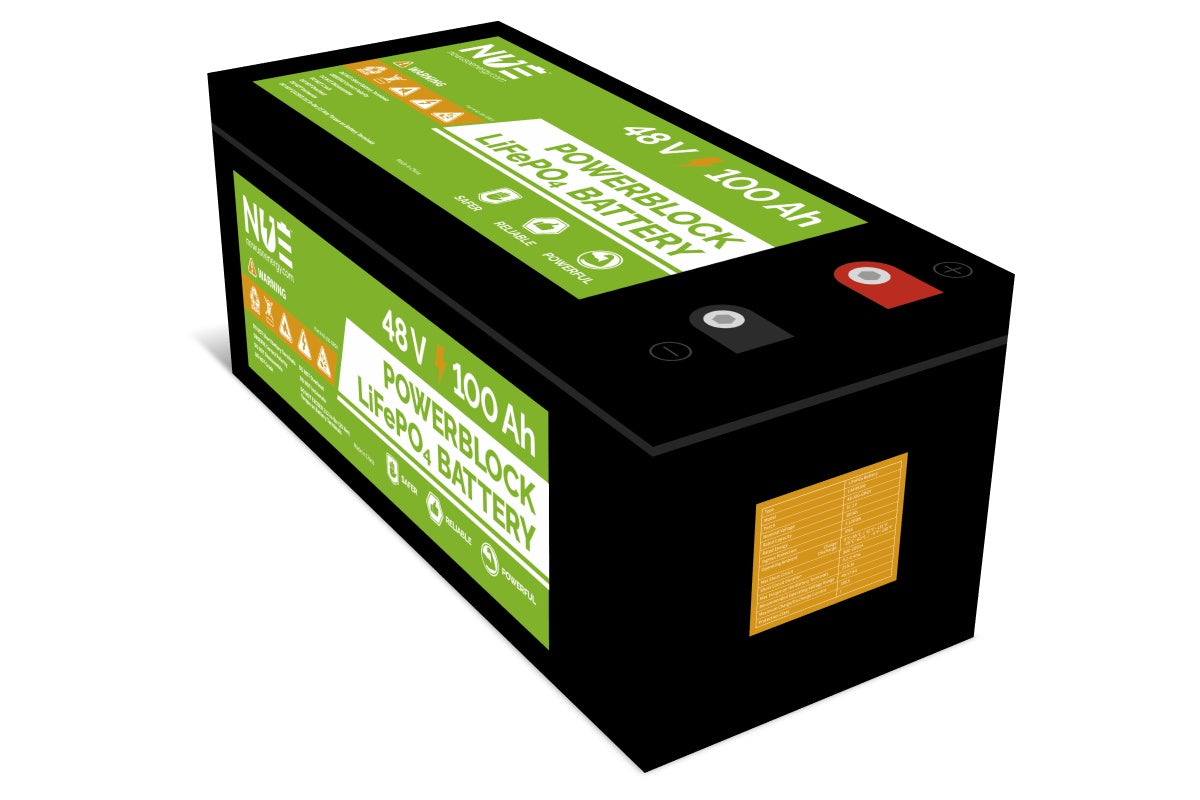

NUE Power 48V 100Ah Product Data Sheet
| NUE-Power Version | 48V 100Ah |
|---|---|
| Battery Type | Lithium Iron Phosphate (LifFePO4) |
| Storage Capacity | 5.12 kWh |
| Estimated Cycle Life based on an 80% Depth of Discharge(subject to other variables including temperature and load) | 6,000 |
| DC Nominal Voltage | 51.2V |
| Operating Voltage Range | 48-58V |
| Max Continuous Charge Current | 100A |
| Nominal and Minimum Capacity | 100Ah |
| Max Continuous Discharge Current | 100A |
| Peak Discharge Current | 300A 1-3S |
| Maximum in Parallel | 20 |
| Discharge Temperature Range | -4-140°F (-20-60°C) |
| Charging Temperature Range | 32-131°F (0-55°C) |
| Weight | 84lb (38kg) |
| Dimensions | 21”x11”x9” (52x27x22 cm) |
| Warranty and Certifications | 5-YEAR LIMITED MANUFACTURER’S WARRANTY UN 38.3, UL(Cell), and CE (Cell)Certified. |
| NUE-Power Version | 12V 100Ah UL |
|---|---|
| Battery Type | Lithium Iron Phosphate (LifFePO4) |
| Storage Capacity | 1.28 kWh |
| Estimated Cycle Life based on an 80% Depth of Discharge(subject to other variables including temperature and load) | 6,000 |
| DC Nominal Voltage | 12.8V |
| Operating Voltage Range | 12-14.6V |
| Max Continuous Charge Current | 100A |
| Nominal and Minimum Capacity | 100Ah |
| Max Continuous Discharge Current | 100A |
| Peak Discharge Current | 550A 400ms |
| Maximum in Series | 4 |
| Discharge Temperature Range | -4-131°F (-20-55°C) |
| Charging Temperature Range | -4-131°F (-20-55°C) |
| Weight | 24.2lb (11.0 kg) |
| Dimensions | 13”x7”x9” (33x18x22 cm) |
| Warranty and Certifications | 5-YEAR LIMITED MANUFACTURER’S WARRANTYUN 38.3, UL1973 (Battery), and CE (Battery )Certified |
